APEX DESIGNS - Rapid Precision Valves (RPV)
- Fastest Tyre Deflation Valve on the market
- From 50 to 20psi in 12 seconds
- Easy Operation
- Factory TPMS Compatible
- Patented Design
Spend more time on the trails, not in the car park.
The Apex Designs USA Rapid Precision Valve (RPV) is the world’s fastest tyre deflation system – and it’s now available in Australia through Apex Designs Australia.
This patent-pending deflation valve lets you drop from highway pressures to off-road-ready in seconds, not minutes. No tools, no waiting around, just fast, controlled deflation every time.
Example: Drop a 35” tyre from 50 PSI to 20 PSI in under 15 seconds.
The Apex Designs RPV requires the factory valve to be replaced, therefore your tyre needs to be taken off.
The ORIGINAL INVENTORS OF THE World's fastest tyre deflators are HERE
This innovative, patent-approved fast deflation tire valve allows you to quickly dump street air pressure to your preferred off-road pressure.
HOW DOES IT WORK?
No tools. No fuss. Just fast, accurate deflation when it matters most.
- Remove the valve cap
- Attach your pressure gauge (We recommend you use the Apex Designs Precision Pressure Gauge)
- Pull the Red Tab to begin rapid deflation
- Watch the pressure drop in real time
- Push the tab back in to stop at your desired PSI
- Replace the cap. You're ready to roll.
AIR DOWN IN UNDER 12 SECONDS
Introducing the tyre deflation valve that will get your tyre pressures down in record time. Its fast…very fast. You can expect a 35" tyre deflation to go from 50PSI to 20PSI in under 15 seconds.
HOW TO MEASURE THE YOUR VALVE STEM
Standard Length (for 15mm Valve Stem Depth)
- Appropriate for most wheels on the market.
XL Length (for 25mm Valve Stem Depth)
- Best for Deep Valve Stem Recess (e.g. Beadlocks)
- For some users, the XL Length is preferred as it allows for more clearance for your finger to pull out the Red Tab.
WHICH ONE DO I NEED?
Click the link below which lists all the common wheels in the market and whether you need Standard or XL Valve Stems.
EASY TO USE
The Rapid Precision Valve will have you airing down in seconds. Pair it up with the Precision Pressure Gauge (PPG) and Quick Connect Chuck to get an accurate readout of your tyre pressure as you deflate your tyre.
Easy enough for your kids to be able to do it!
Factory TPMS Compatible
The RPV works with the factory Tyre Pressure Monitor Sensors that come on the American vehicles (RAM / Chevy / F-Truck / Jeep).
The Rapid Precision Valves come with a bracket (see picture) which will work with this style of TPMS.
YOU DO NOT NEED TO BUY TPMS ADAPTORS IF YOU HAVE A
- RAM 1500 - 5500
- Chevy / GMC 1500 - 3500
- Ford F-Truck F150 - F550
- Jeep Wrangler / Gladiator
AFTERMARKET TPMS COMPATIBLE
If you have an aftermarket TPMS, then you can use our TPMS Sensor Adaptor Kit.
FREQUENTLY ASKED QUESTIONS
The RPV replaces your entire valve stem with a high-flow precision unit, giving you the fastest possible tyre deflation. You simply flip the RPV open and it dumps air dramatically faster than any clip-on deflator or standard valve core removal tool.
Yes. Once installed, the RPV becomes your new valve stem. It is designed for long-term daily-driving, off-road, towing, and heavy-duty use.
The RPV fits most wheels that use standard Schrader valve stems. Some wheels with very tight recesses may require checking clearances. If your wheel accepts a normal valve stem, the RPV will typically fit.
Visit our comprehensive guide which teaches you how to measure your Valve Stem.
Most factory TPMS sensors are integrated inside the valve stem. This is easily relocated to the RPV for the following vehicles:
- Ram Trucks
- Chevy / GMC
- Ford F-Trucks
- Jeeps
- Nissan Y62 Patrol
If you have an aftermarket internal TPMS then you will need our TPMS Adaptor kit.
If you have an external TPMS (dome type) then you will need the TPMS Spacer.
Yes. The RPV accepts all standard tyre inflator chucks. Just push your inflator onto the main shaft and inflate as usual.
You will have a slightly faster inflation due to the shape of the valve stem.
For an even faster inflation, get the Push to Connect Chuck which pushes in the schrader core in 100% of the way, halving the inflation time for your tyres.
The RPV is significantly faster. Removing the tyre core and bypassing the entire valve stem gives maximum airflow, making it the fastest air-down solutions available.
The RCV is fast, but the RPV is the top-tier option for speed.
No. The RPV installs exactly where your valve stem goes. Remove the old stem, insert the RPV, tighten the nut, and you’re done.
Yes. Like any component that uses seals, O-rings and oil, the RPV will experience normal wear over time—especially after long, harsh off-road trips.
We recommend keeping a seal repair kit on hand for quick field servicing. If you notice a slow leak or reduced performance after heavy use, it’s usually a sign the internal seals need to be replaced.
Yes. RPVs are designed for heavy 4x4 use. They use precision sealing, corrosion-resistant materials, and internal O-rings to keep dirt and grit out when closed.
No. When installed correctly, the internal O-rings and precision machining create a secure seal. Regular checks during tyre rotations are always good practice but ongoing leaks are extremely rare.
Use an analogue tyre pressure gauge. A digital gauge won't be able to keep up with the rapid drop in pressure, so an analogue gauge will give you a real time view as to your current tyre pressure.
Check out the Apex Designs Precision Pressure Gauge or the Precision Tyre Inflator.
The external parts of the RPV are threaded and secured from the inside of the wheel — meaning they cannot be removed without taking the tyre off. This makes them effectively tamper-proof.
No. The Rapid Precision Valve requires a straight valve stem mounting point, so it is not compatible with right-angled stems like those on the Isuzu NPS.
For vehicles with angled stems, we recommend using the Rapid Connect Valve (RCV) instead.
RPV Complimentary Products
APEX DESIGNS - RPV TPMS Adapter Kit
APEX DESIGNS - RPV Replacement Cap and Lanyard
APEX DESIGNS - RPV Rebuild Kit
Push to Connect Schrader Chuck
APEX DESIGNS - Precision Pressure Gauge (PPG)

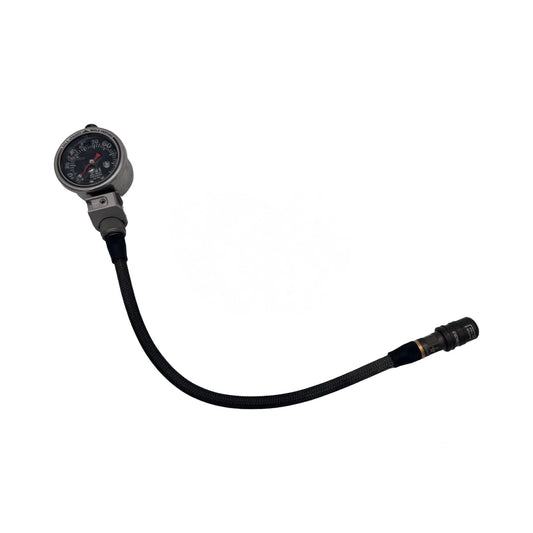

Bundle: Precision Pressure Gauge + Push to Connect
